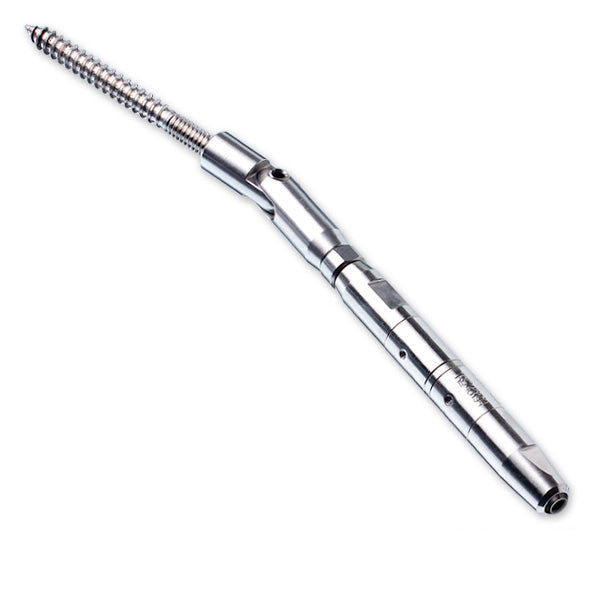

Feeney 9916 tensioning pivot connector

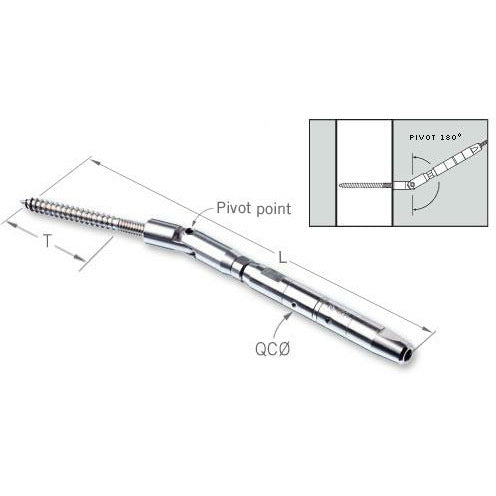

9916 Skematic feeney fitting tensioning for stairs

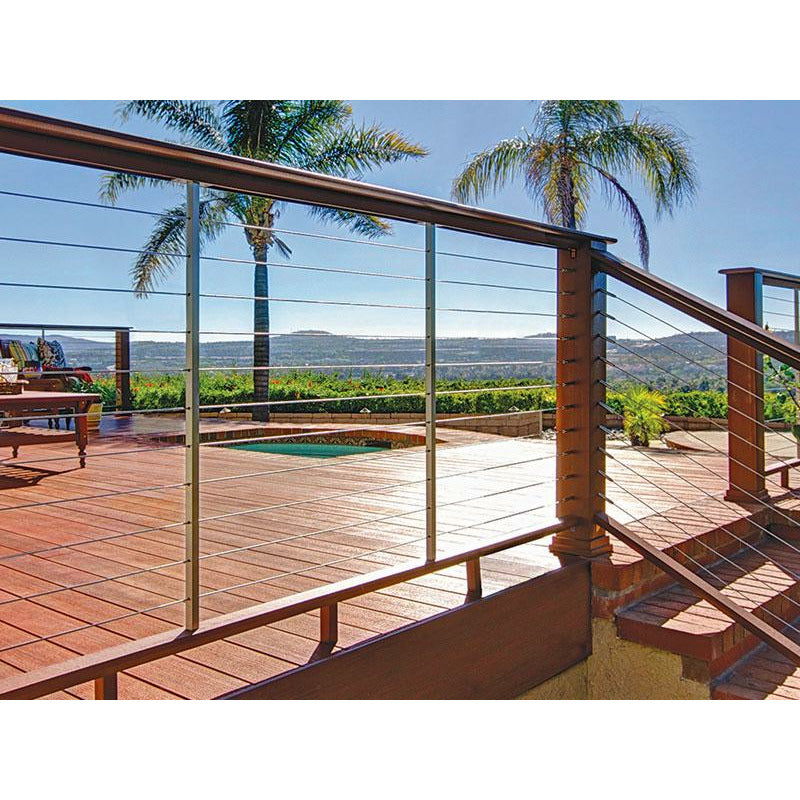

Feeney Stair Infill using 9916 fittings pivot tensioner
Feeney Stair with wood pivot 9916
9916 Pivot Tensioning feeney pivot tensioner fitting for stair cable tightens the cable and allows for stair and angles

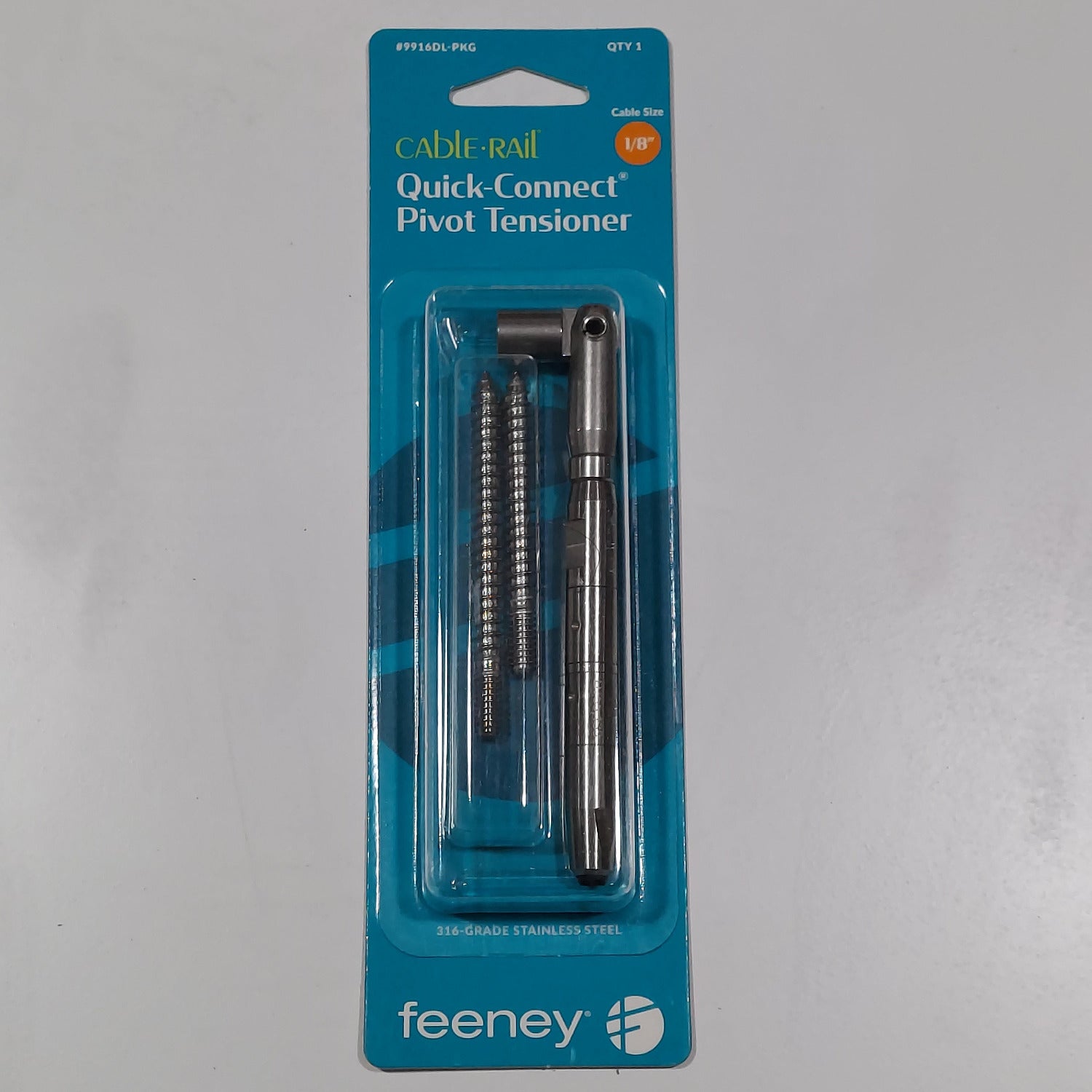

Pivot Tensioner back of package describes the 9916 fitting and it's purposes. Quick connect lag pivot tensioning fittings work great with all build your own fittings

Feeney 1/8" Piviot Tensioner Fitting 9916

$47.70
$47.70
Save 0
Not Available Online
  • In stock, ready to ship
Feeny Inc cable manufacture logo

Build Your Own

Quick Connect Pivot Tensioner #9916 is a 1/8" Compatible tension swiveling connector allowing for 3/4" in tensioning adjustment, using a lag for stair rail application. With a wide 180 degree pivoting range for stair application, the lag can be screwed into the post level. Then once the cable is connected an tightened, the angle of all connectors will be consistent along the stairs. Includes 2" Lag for wood posts, and 2-1/2" Lag for Composite Sleeved Posts.

Piviot Tensioner 9916 Guide
