When a standard kit doesn't quite fit the vision, Feeney DesignRail cable gives you the flexibility to build a railing system that's tailored to your project from the ground up. This is Feeney's fully customizable line: you choose the top rail profile, the post style, the mounting method, the infill type, and even the color. It's the same quality materials and engineering Feeney is known for, just with a lot more options at your fingertips.
We carry the full Feeney custom railing lineup and work with customers regularly to spec out DesignRail projects of all sizes. Whether you're a contractor putting together a bid or a homeowner designing your dream deck, our team can help you sort through the options and land on the right configuration.
Top Rail
One of the biggest advantages of the Feeney DesignRail cable system is the range of top rail choices. Rails ship in lengths up to 20 feet, which means fewer seams and a cleaner finished look. You'll choose from profiles including:

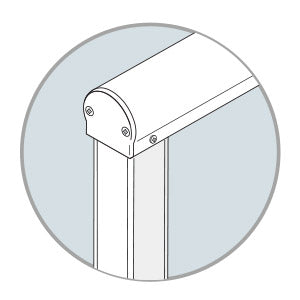

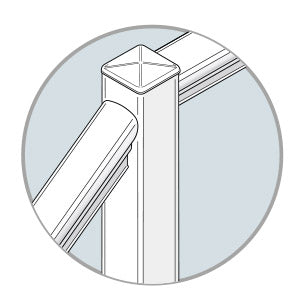

Series 150
The classic rounded, graspable profile. A great fit when code requires a graspable handrail.

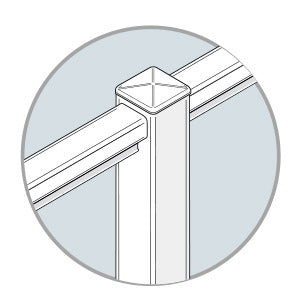

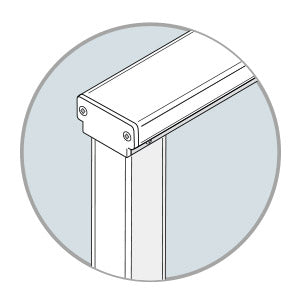

Series 200
A rectangular over-the-post profile that gives a more contemporary look.

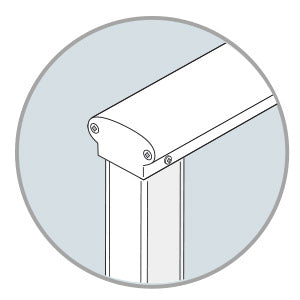

Series 350
An elliptical profile that's comfortable in the hand and visually distinctive

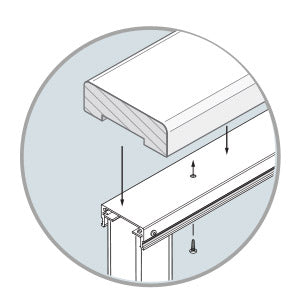

Series 450
An aluminum channel designed to accept a drink rail cap, perfect for entertaining spaces.
Each profile is available in 14 standard powder-coated colors, and Feeney also offers custom color matching if you need something specific.
Infill Options
While Feeney cable railing is what most people come to us for, the DesignRail system supports a wide range of Feeney infill kits and panel options. Horizontal cable is by far the most popular, as it keeps sightlines open and gives the railing a clean, modern feel. But you've also got vertical cable, aluminum balusters, glass panels, stainless steel mesh, laser-cut aluminum panels, and resin infill to choose from.
For cable applications, Feeney uses marine-grade 316-type stainless steel in 1/8" diameter, which is the residential standard. Their CableRail kits come with factory-swaged fittings and are available in lengths to match your run. If you're running Feeney stair cable, the fittings accommodate angles between 29 and 34 degrees for a clean transition on stairways.
Horizontal Cable
Vertical Cable
Glass
Alminum Baluster
Stainless Steel Mesh
Lazer Cut Aluminum
Resin
Posts and Mounting
Feeney custom rail posts measure 2-3/8" x 2-3/8" and come in four mounting configurations to handle just about any situation: surface mount for deck or concrete surfaces, fascia mount for attachment to joists or rim boards, fascia bracket mount for overhanging deck boards, and stanchion mount for concrete applications. Between the mounting options and the range of post heights (36", 38", and 42"), there's a setup that works for most residential and commercial builds.

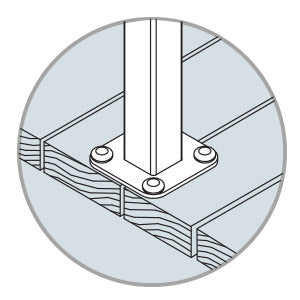

Base Mount Post
Post with base to attach to the surface of decking, concrete, or stone.

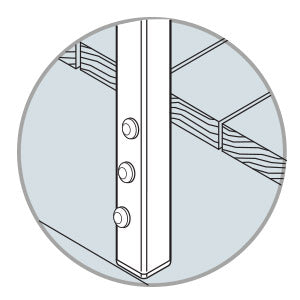

Fascia Mount Post
Fascia posts attach to the fascia, joists, or rim of the deck or patio.

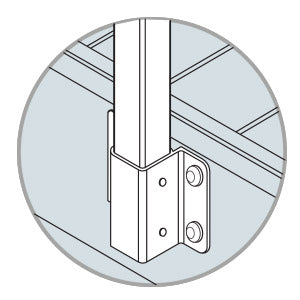

Fascia Bracket Post
Bracketed fascia posts are handy when the decking is overhung past the rim.

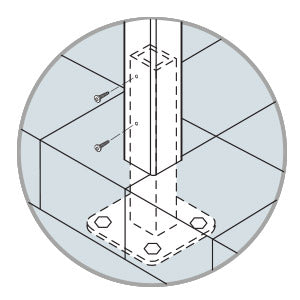

Stanchion Mount Posts
These posts can be very useful for concrete application
Horizontal INfill
Horizontal cable is the most popular type of infill for DesignRail. The bottom rail is optional, and can be included or replaced with a cable.
DesignRail Brochure
Custom Cable Rail Fabrication, Personalized for Unparalleled Disgner Wire Cable with Style and Versatility
Discover the pinnacle of cable railing systems with Feeney DesignRail Custom, a premier solution that offers unparalleled customization and a wide range of options to create a truly unique railing experience.
What does DesignRail by Feeney offer?
- Customizable Design: Feeney DesignRail Custom allows you to create a one-of-a-kind railing system that perfectly complements your home's architecture and personal style. With 6 available top rail profiles, 14 standard colors, custom match color, and a variety of infill options, the possibilities are endless.
- Superior Quality: Feeney DesignRail is crafted from high-quality materials, including marine-grade 316-type stainless steel and powder-coated aluminum, ensuring long-lasting durability and resistance to the elements.
- Versatile Applications: Feeney DesignRail is suitable for a wide range of applications, including decks, patios, balconies, and staircases.
- Easy Installation: Feeney's user-friendly design and pre-assembled components make installation a breeze, even for DIYers.
- Code Compliant: Feeney DesignRail meets or exceeds building codes, ensuring a safe and secure railing system.
DesignRail Components
- Top Rails: Choose from 6 available top rail profiles, including Series 100, Series 150, Series 200, Series 300, Series 350, and Series 400.
- Rail Heights: Choose from finished railing heights of 36 inch, 38 inch, or 42 inch.
- Posts: Feeney offers a variety 2-⅜” x 2-⅜” posts with mounting styles including surface mount, fascia mount, fascia bracket mount, and stanchion mount, to suit any application.
- Infill: Choose from a variety of infill options, including 316-type cable strung horizontally or vertically, vertical aluminum balusters, glass panels, stainless mesh, resin infill, and other panel and infill types.
- Cable: Feeney offers a variety of cable sizes. 1/8 inch cable is standard for residential spaces, and types of cable connections for any project.
Additional Features
- Color Customization: Feeney offers custom color matching for the top rails, allowing you to create a truly unique look. Match your favorite team or get the right shade for your space.
- Feeney CableRail Kits for Metal: Feeney offers state of the art ⅛” CableRail Kits for use with Series 200, 300, 350, and 400 top rails.
- Extended Lengths: Feeney provides lengths of top rail up to 20’ for seamless transitions in the DesingRail System. Rails are cut and assembled on site for exact precision.
Experience the Difference
Elevate your outdoor space with Feeney DesignRail Custom, the ultimate choice for a custom cable railing system. With its unparalleled versatility, superior quality, and easy installation, Feeney DesignRail offers everything you need to create a stunning and functional railing system.
Contact us today to learn more about Feeney DesignRail Custom and get a quote for your project.
See downloads below
Why Go Custom?
The Feeney custom railing system makes sense when you want a specific look, need to work around an unusual layout, or simply want more control over the finished product. Contractors appreciate the precision as rails are cut and assembled on-site for exact fits. Homeowners appreciate the design freedom and the fact that the finished product is built to last with powder-coated aluminum and stainless steel components that require very little maintenance.
