Westbury Inside Corner Mount CHR
Westbury Collections
Westbury rail is an excellent option for code compliant rail and is incredibly well suited for deck or front porch railing.
Westbury Railing utilizes thick-walled posts and rails for an incredibly durable and sturdy railing systems. The advanced mechanisms employed by Digger Specialties truly sets their railing apart from other systems. From the color finish, to post mounting, to attaching brackets, and setting the railing, the name Westbury is synonymous with quality.
Lighting
Magena Star 50 Watt Transformer Kit
Magena Star Ornamental Low Voltage Lighted Cap
Magena Star Combo Low Voltage Lighted Cap
Magena Star Side Light Low Voltage
Magena Star Tear Drop Low Voltage Side Light
Riser Low Voltage Light | Magena Star
Wire Harness for Lighting | Magena Star
Wire Splitter for Lighting | Magena Star
Westbury Railing Documents
Westbury Aluminum Railing Brochure
Westbury Magena Star Low Voltage Lighting
Westbury Stair Racking Guide
Tuscany Rail Installation Brochure
Westbury Post Installation
Westbury Bracket Template Guide
Westbury Digger Specialties Warranty
Westbury Drink Rail Adapter Guide
ADA round graspable Rail CHR
Westbury Aluminum Railings like Tuscany C10 Aluminum Railing Collection are centered around the rail kits, such as 36" Tuscany Rail Kits. Posts are interchangeable between rail collections, and come in several sizes! Tuscany Collection by Westbury is an excellent option for aluminum rail and is compatible with all Westbury post sizes, in various colors.
Westbury rail is an excellent option for code-compliant rail and is incredibly well suited for deck or front porch railing. Westbury Railing utilizes thick-walled posts and rails for incredibly durable and sturdy railing systems. The advanced mechanisms employed by Digger Specialties truly sets their railing apart from other systems. From the color finish, to post mounting, to attaching brackets, and setting the railing, the name Westbury is synonymous with quality.
See all the options in the Westbury Brochure at the bottom of the page.
Westbury has many available railing options, but only certain railing profiles, posts styles, lengths, and colors are stocking. non-stock items are considered special order.
2"x2" Post Kit
2"X2" Crossover
2.5"X2.5" Power-Power
3"X3" Post Kit
4"X4" Post Kit
Westbury Post
Westbury Railing like other aluminum railing is mostly made from two components. The first component creates the structural aspect - Posts. Posts are sold in the form of kits which include a cap and flair to cover the base
Westbury posts are available in a Surface Mounted profile and have a welded base flange. Each post has four holes in the flange for connection points for lags or screws to be connected through the top side of the post flange. Each connection point must be securely fastened with a minimum 3.5" Concrete or Wood Screw. same items but with an over-the-post bracket instead of a cap.
Westbury Rail Kits
- The second major component are Rail Kits
- Westbury Aluminum Railings like Tuscany C10 Aluminum Railing Collection are centered around the rail kits, such as 36" Tuscany Rail Kits. Posts are interchangeable between rail collections, but do come in several sizes. Tuscany Collection by Westbury is an excellent option for aluminum rail and is compatible with all Westbury post sizes, in various colors. Tuscany Collection by Westbury is an excellent options of rail and is compatible with several post options in various colors.
- Westbury rail kits are produced in several series, like C10 and C80. However, they all share the same top and bottom rail profile. What changes are the infill and third rail options. Westbury Rail Kits are sold in various lengths and are true to length. That means an 8’ rail is at least 96”. All rail kits are designed to be cut in the field. Once the posts are spaced evenly and installed, the rails must be cut to length and installed using brackets (4/pk of brackets are included with each rail kit.)

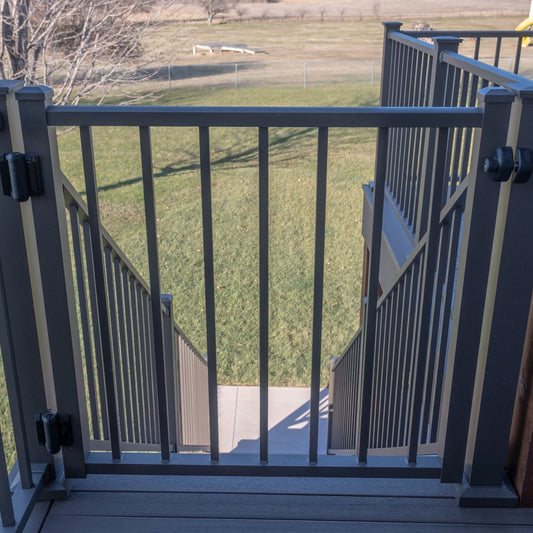

- C10 Tuscany is the most popular and cost-effective Westbury collection. It has a single top and bottom rail with ¾” aluminum balusters. C80 VertiCable 36" Rail Kits are another popular choice and employ vertically strung stainless steel cables. C30 Rivera is the third stocking profile, and is similar to C10 but with a third rail. C70 is another available rail but does not come with infill. C70 Veranda rails designed for ¼” Tempered Glass, glass sold separately. Other collections by Westbury such as C31, C32, C33, C34, C30R, and C20 are available by special order. (Currently, Tuscany and VertiCable are the only two Railing Collections available for purchase online.)
Accessories
Depending on the project, additional accessories may be needed. If you are installing a large amount of level railing, a bracket mounting template might come in handy. If you are using a rail kit in multiple areas, additional brackets will be required. Touch-up paint is a great tool to have in case of a scratch or just to coat cuts. Additional footblocks are available as well. If you want a deck board to top the rail, a Drink Rail Bracket Adaptor will help by securing to the top of the rail and allowing a board to be secured to the top of it.
